Color: | Black | Material: | SBR Rubber |
---|

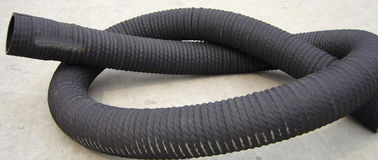

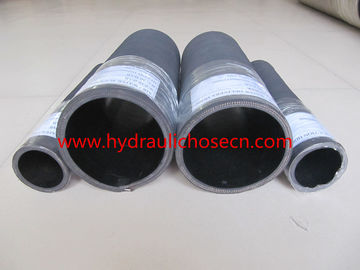

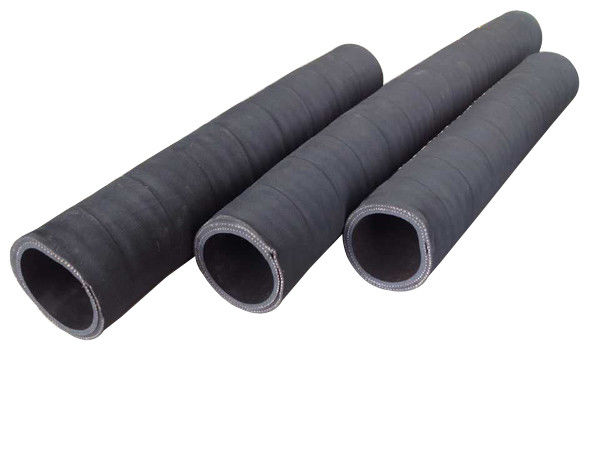

Water Suction and Discharge Hose
http://www.hydraulichosecn.com
Heavy suction pipe is made by the highest quality of compound synthesis. It has the maximum flexibility with long service life and light weight.Designed for full suction and discharge pressure; It handles sewage,waste water,etc.
T: Black SBR, Styrene butadiene rubber synthetic rubber
C: Black SBR, Styrene butadiene rubber synthetic rubber
R: Multi-layer fiber layer with spiral wire strengthening.
T.P: -20℉to +180℉(-30℃to +80℃)
S.F: 3:1
ID | Ply | OD | Length | Bending radius | WP | VP | Weight | |||||
in | mm | Ply | in | mm | Ft | M | in | mm | Psi | Kg/cm² | mm-Hg | Kg/m |
1 | 25.4 | 2 | 1.437 | 36.5 | 200 | 60 | 6 | 150 | 150 | 10 | 736.6 | 0.89 |
1-1/4 | 31.8 | 2 | 1.689 | 42.9 | 200 | 60 | 8 | 200 | 150 | 10 | 736.6 | 1.04 |
1-1/2 | 38.1 | 2 | 1.937 | 49.2 | 200 | 60 | 10 | 250 | 150 | 10 | 736.6 | 1.21 |
2 | 50.8 | 2 | 2.457 | 62.4 | 200 | 60 | 12 | 300 | 150 | 10 | 736.6 | 1.69 |
2-1/2 | 63.5 | 2 | 2.957 | 75.1 | 200 | 60 | 15 | 375 | 150 | 10 | 736.6 | 2.04 |
3 | 76.2 | 2 | 3.496 | 88.8 | 200 | 60 | 20 | 500 | 150 | 10 | 736.6 | 2.80 |
4 | 101.6 | 2 | 4.587 | 116.5 | 200 | 60 | 28 | 700 | 150 | 10 | 736.6 | 4.67 |
5 | 127.0 | 4 | 5.752 | 146.1 | 200 | 60 | 40 | 1000 | 150 | 10 | 736.6 | 6.45 |
6 | 152.4 | 4 | 6.752 | 171.5 | 200 | 60 | 48 | 1200 | 150 | 10 | 736.6 | 7.63 |
8 | 203.2 | 4 | 8.854 | 224.9 | 100 | 30 | 64 | 1600 | 150 | 10 | 736.6 | 13.01 |
10 | 254.0 | 6 | 11.11 | 282.2 | 65 | 20 | 100 | 2500 | 150 | 10 | 736.6 | 21.9 |
