1" low temperature LNG 304 stainless steel flexible hose / LNG Low Temperature Helic or Annular Type Metal Hose
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | 304, 316, 321 Stainless Steel | Diameter: | 1/2 Inch Upto 4 Inch |
|---|---|---|---|
| Working Pressure: | 1.2MPa-7.5MPa | Application: | LNG, Water, Oil, Gas Etc |
| Burst Pressure: | 2000PSI | Name: | Flexible Metal Hose / Stainless Steel Hose |
| Connection: | Flange, Quick Coupling, Thread |
http://www.hydraulichosecn.com
Low temperature vacuum insulate stainless steel flexible hose

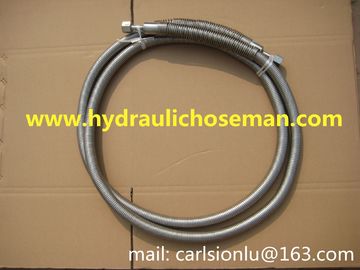

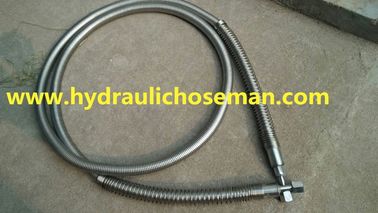

LNG Low Temperature Metal Hose
Specifications
LNG Low Temperature Metal Hose
temperature is from -196 to 700 deg.C,
pressure can be 0.6~10Mpa,
the material of the flexible metal bellow is made of SS304,SS321,SS316 or SS316L as your requirement, we produce stainless steel metal bellow in accordance with the ISO9001:2008 GB/T14525-2010 standard .
| Pipe Diameter | DN1/2-32inch |
| Pipe Material | SS304,316L,etc |
| Pipe thickness | 0.18-2.0mm |
| Braided mesh material | SS304 etc |
| Braided mesh layer | single layer or double layers |
| Max. woking pressure | 10Mpa |
| Working temperature | (-196)~(+700) °c |
| Connect type | flange,thread,welded.etc |
| Standard | ANSI,JIS,DIN,GOST,etc |
| Flange material | stainless steel or carbon steel |
| Pipe assembly length | according to clients' requirements |
Features
1.To absorb effectively vibration, noise,thermal expansion from pipeline system;
2.To resolve minor deviation because of piping connecting and eliminate the pipeline residual stress;
3.Applied to repeated motion in high temperature areas,good anti-fatigue performance;
4.Good flexibility,resistant to high temperature, resistant to corrosion.
5.Applied in the fields of petroleum,chemical industry,aerospace,metallurgy,electricity, gas,building,mechanical, construction,iron and steel,paper making,fabric,medicine,food and vessels ect.
Product Description
low temperature resistance flexible metal hoses
Inner Core: Corrugated Stainless Steel
-Flexible metal hose stainless steel core strengths are available in 304, 321 and 316L stainless steel
-Stainless steel tubing formed into corrugations parallel to one another
-Helical / Convoluted option available upon request

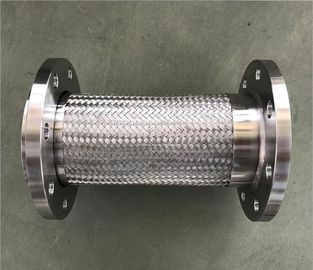

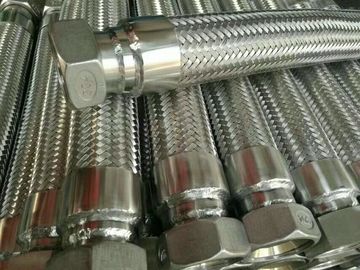

Outer Core:Braided Stainless Steel Layers
-Purchase corrugated core hose with no layers, single or double braided
-Flexible metal hose outer braid layers made from 304 stainless steel
|
Nominal Diameter DN(mm)
|
Internal Diameter I.D(mm)
|
Outer Diameter O.D(mm)
|
Plysn
|
Wire Diameter (mm)
|
Weight Kg/m
|
|
8
|
12.5
|
6
|
24
|
0.3
|
0.13
|
|
10
|
16
|
7
|
24
|
0.3
|
0.17
|
|
12
|
19.5
|
8
|
24
|
0.3
|
0.19
|
|
15
|
22.5
|
7
|
36
|
0.3
|
0.21
|
|
18
|
27
|
8
|
36
|
0.3
|
0.3
|
|
20
|
29.5
|
9
|
36
|
0.3
|
0.31
|
|
25
|
34.5
|
10
|
36
|
0.3
|
0.39
|
|
32
|
43
|
12
|
36
|
0.3
|
0.55
|
|
40
|
53
|
10
|
48
|
0.4
|
0.75
|
|
50
|
65
|
12
|
48
|
0.4
|
0.95
|
|
65
|
81
|
14
|
48
|
0.4
|
1.3
|
|
80
|
102
|
14
|
72
|
0.4
|
1.6
|
|
100
|
124
|
16
|
72
|
0.4
|
1.9
|
|
125
|
156
|
12
|
96
|
0.5
|
2.8
|
|
150
|
186
|
15
|
96
|
0.5
|
3.9
|
|
200
|
244
|
18
|
96
|
0.5
|
5.6
|
|
250
|
297
|
18
|
112
|
0.5
|
6.5
|
|
300
|
353
|
18
|
144
|
0.5
|
7.5
|
|
350
|
403
|
18
|
148
|
0.5
|
8.5
|
|
400
|
453
|
18
|
160
|
0.5
|
10.5
|
