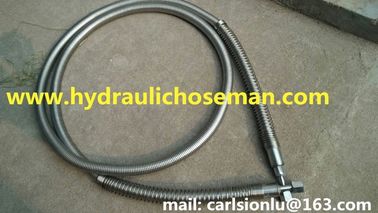

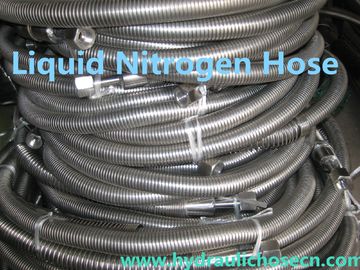

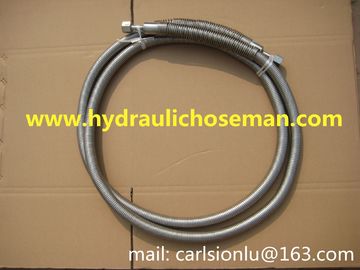

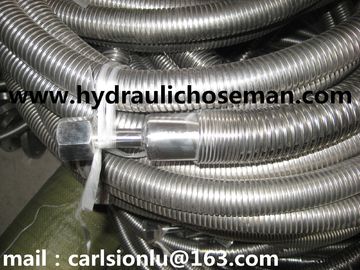

vaccum insulated hose / stainless steel flexible hose/ liquid nitrogen hose / low temperature flexible metal hose
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Stainless Steel 304 Or 316 | Safe For Cryogenic Temperatures: | Between -320°F To 500°F |
|---|---|---|---|
| Working Pressure: | Rated Up To 450 PSIG/31 Bar | Working Temperature: | -196C To 200C |
LNG fueling hose / LNG vent hoses
http://www.hydraulichosecn.com
Specifications
HuaouRubber Hose manufacture cryogenic hoses for use in LNG refuelling
applications for dispensers, medical systems and gas plants
Product Description

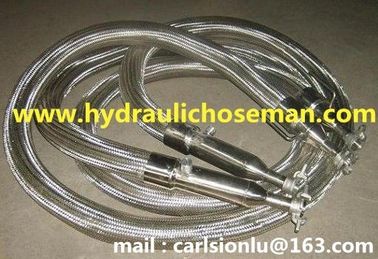

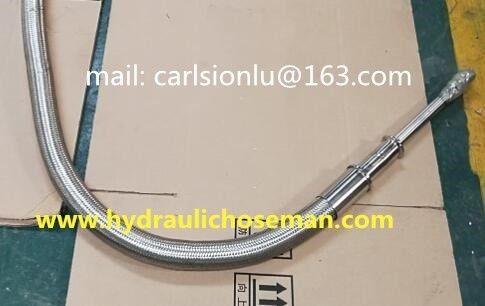

Huaou Rubber Hose LNG fueling hose is made from braided and corrugated
stainless steel for long life and problem free use. Our manufacturing processes and advanced construction technology ensures Huxing Rubber Hose LNG fueling and LNG vent hoses for dispensers are able
to handle high working pressures while retaining maximum flexibility for LNG fueling.
Huaou Rubber Hose LNG stainless steel fueling hoses are available in 1 inch for
LNG fueling applications and 1/2 inch hose for vent applications in single, double
or tripple braid and bellow type stainless steel.
· 1 inch LNG fueling hose for use with LNG 50 GPM Nozzles
· 100% pressure tested
· 37° Female SAE flare connection, 1” OD tube size (both ends)
· Safe for cryogenic temperatures between -320°F to 500°F
· Rated up to 450 PSIG/31 Bar working pressure
· Multiple variants available. Please indicate upon enquiry.
· Designed for LNG fueling dispensers as well as ship to ship applications
HuaouRubber Hose manufacture and supply 1/2" LNG stainless steel vent hoses for LNG dispensers in combinations of 12ft, 15ft and 18ft.
Should you have a specific requirment for other lengths of LNG hoses, please get
in touch and we would be happy to manufacture our hoses to your needs which can
include 2" to 18" depending on the material and application.
Our hoses are manufactured as bellow type in stainless steel and composite for ship to ship applications.
HuaouRubber Hose can supply LNG stainless steel fueling hoses in 2", 3" and 4"
diameters.
· 1/2 inch LNG vent hose for use with LNG vent nozzle on LNG dispensers
· 100% pressure tested
· Nut with 304 5/8" tube 45 SAE Flare UNF thread (both ends)
· Rated up to 1100 PSIG/76 Bar working pressure
Product Description

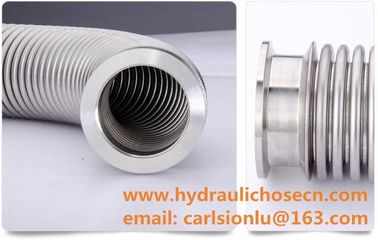

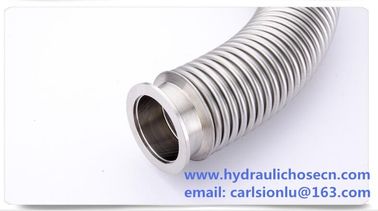

low temperature resistance flexible metal hoses
Inner Core: Corrugated Stainless Steel
-Flexible metal hose stainless steel core strengths are available in 304, 321 and 316L stainless steel
-Stainless steel tubing formed into corrugations parallel to one another
-Helical / Convoluted option available upon request
Outer Core:Braided Stainless Steel Layers
-Purchase corrugated core hose with no layers, single or double braided
-Flexible metal hose outer braid layers made from 304 stainless steel
|
Nominal Diameter DN(mm)
|
Internal Diameter I.D(mm)
|
Outer Diameter O.D(mm)
|
Plysn
|
Wire Diameter (mm)
|
Weight Kg/m
|
|
8
|
12.5
|
6
|
24
|
0.3
|
0.13
|
|
10
|
16
|
7
|
24
|
0.3
|
0.17
|
|
12
|
19.5
|
8
|
24
|
0.3
|
0.19
|
|
15
|
22.5
|
7
|
36
|
0.3
|
0.21
|
|
18
|
27
|
8
|
36
|
0.3
|
0.3
|
|
20
|
29.5
|
9
|
36
|
0.3
|
0.31
|
|
25
|
34.5
|
10
|
36
|
0.3
|
0.39
|
|
32
|
43
|
12
|
36
|
0.3
|
0.55
|
|
40
|
53
|
10
|
48
|
0.4
|
0.75
|
|
50
|
65
|
12
|
48
|
0.4
|
0.95
|
|
65
|
81
|
14
|
48
|
0.4
|
1.3
|
|
80
|
102
|
14
|
72
|
0.4
|
1.6
|
|
100
|
124
|
16
|
72
|
0.4
|
1.9
|
|
125
|
156
|
12
|
96
|
0.5
|
2.8
|
|
150
|
186
|
15
|
96
|
0.5
|
3.9
|
|
200
|
244
|
18
|
96
|
0.5
|
5.6
|
|
250
|
297
|
18
|
112
|
0.5
|
6.5
|
|
300
|
353
|
18
|
144
|
0.5
|
7.5
|
|
350
|
403
|
18
|
148
|
0.5
|
8.5
|
|
400
|
453
|
18
|
160
|
0.5
|
10.5
|
